PD check is suitable for periodic assessment or permanent monitoring
of Cable & Cable Accessories (Such as joints & terminations);
Electric Generators & Motors;
Power & Measurement Transformers;
Gas Insulated & air insulated switchgears;
Outdoor Insulators for over head lines;
Other EHV, HV, MV & LV equipment & components.

Innovative digital partial discharge recording & processing;
Fully remote controlled;
PD source identification;
Location of defects;
Pulse shape analysis.

Communication through Blue tooth to HVA.
Solid state air insulated design.
Real-time display of actual output waveform.
Input Voltage – 2 type “C” alkaline cells.
Operating Voltage – Sinusoidal: 1-23 kV   Frequency:  0.1 Hz

Automatic operation with microprocessor control;
Guard circuit for stray leakage current guard;
Four output voltage selections;
Measurement voltage accuracy: ± 1% F.S;
Surge and transient protection;
LCD screen display.

Test system is portable, offline system design to detect winding movement. Testing software provided calculates objective estimates of degree of movement base on two different potential analysis technique.

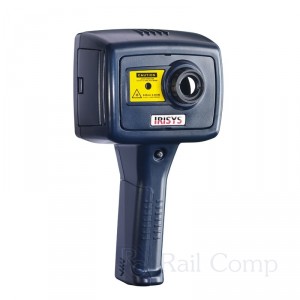

Temperature Range: -10° C to + 250° C
Field of view (FOV): 21.4°x16°;
Detection: 320 x 240 pixels;
Thermal Sensitivity: 0.08° C
Colour LCD with LED backlight;
Battery operated.

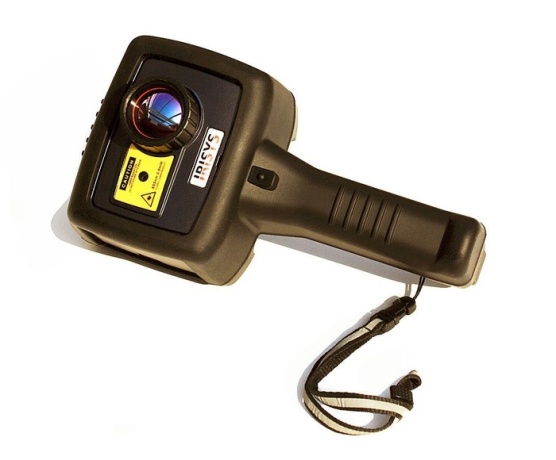

Temperature Range: -10° C to + 500° C
Field of view (FOV): 20°x15°;
Detection: 160 x 120 pixels;
Thermal Sensitivity: 0.08° C
Field Replaceable Batteries

Temperature Range: -10° C to + 250° C
Field of view (FOV): 10.2°x7.7°;
Detection: 160 x 120 pixels;
Thermal Sensitivity: 0.1° C
Colour LCD with LED backlight;
Battery operated.

Outstanding imaging and temperature measurement;
Measurement Range: 0° C to + 250° C;
Field of view (FOV): 20°x15°;
Zooming facility available;
Hot and cold spot detection;
Battery operated.

Outstanding imaging and temperature measurement performance;
Suitable for high temperature measurement;
Imaging Range: +50° C to + 900° C;
Field of view (FOV): 20°x15°;
Detection: 160 X 120 pixels;
Colour LCD with LED backlight;
Battery operated.

Audio out for headset or Pc recording;
7 segment display in relative dB mode;
90 dB dynamic range display;
Center frequency range 40 KHz;
Bandwith38KHz to 48 KHz;
4 hour autonomy; Integrated display.

Ultrasonic detector designed for corona and arcing inspections
7 segment display in relative dB mode;
Built-in sensor with 5 degrees conical directivity
I-Integrated Speaker
Bandwidth 38kHz-48kHz
Rugged Delrin-made casing

Partial Discharge Detector
Software for P.D. Diagnostics and P.D. location
Hifh Voltage Filter
Corona Rings
Coupling Capacitor

Suitable for use with the HVA30 VLF test systems
Test result storage to notebook or PDA via Bluetooth ® connection
Solid state air insulated design
Lightweight portable unit

Suitable for use with the HVA30 VLF test systems
Test result storage to notebook or PDA via Bluetooth ® connection
Supplied complete with analysis software
Real-time display of actual output waveform
Lightweight portable unit

Peak measurement value in dB relative to 15 picoCoulomb
Peak detection with a fast numeric circuit (CPLD)
Fast numeric processor (DSP) for instant analysis of results
Bandwidth reception, without any distortion or alleviation from the discharge impulses
LCD (Liquid Crystal Display) displays results in easy- to- read, big letter casings
